Initial Configuration (Part 1 of 3)

Version 2.5 Version 3.0

Author: Ben
Applies to Platform: UTM 2.4, UTM 2.5; 4i Edge 2.5
Last Updated: 26 May 2014

Author: Ben
Applies to Platform: UTM 3.0, 4i Edge 3.0
Last Updated: 26 May 2014

This lesson will illustrate the steps required to configure your Endian appliance the very first time.

Accessing the Device

?name=media_1295299168293.png config.png

The very first time you boot-up your appliance, you'll need to connect a workstation (laptop or desktop) to the Green (LAN) interface of the device. If you are connecting directly from your device to the Endian then you'll most likely require a crossover cable. If you're accessing the Endian through a switch or hub then you can use a simple straight-through Ethernet cable. The default IP of the Endian is so you'll need to set a static IP on your local machine that's within that Class C subnet (/24) so for example you could set your device to use the IP with a netmask of

Endian Management Default IP:

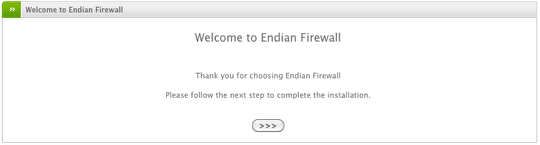

Once you've reached the initial Endian wizard screen (pictured above), click the Forward button fwbutton25.pngfwbutton.png to begin the Installation Wizard.

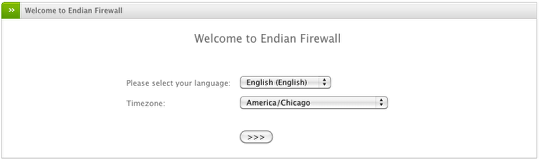

Set the Language & Timezone

?name=media_1295299261527.png config1.png

Here you can select your preferred language for the Web UI as well as your time zone. Click the Forward button to continue.

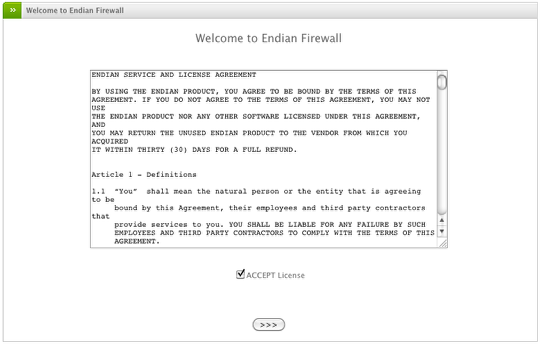

Accept the License Agreement

?name=media_1295299340884.png config3.png

Next you must select that you accept the Endian license agreement. Click the Forward button to continue.

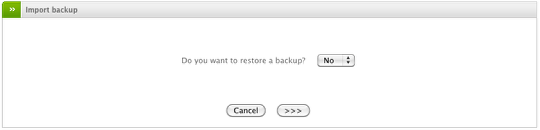

Restore from Backup

?name=media_1295299487364.png config4.png

The next option allows you to restore a previous backup configuration to your device. If you have one and want to use it, then select Yes and choose the backup file (.tgz); otherwise, you can select No and click the Forward button to continue.

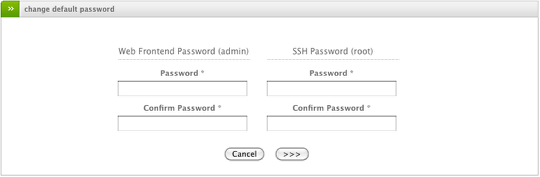

Set Web / SSH Passwords

?name=media_1295299882613.png config5.png

Next, you'll set your Web UI and SSH (or console) passwords (for the admin and root users, respectively). Click the Forward button to continue.


It is strongly recommended you choose passwords that are highly complex (long length, alphanumeric and special characters, etc.) as this device is a security (gateway) appliance and thus should be one of your most protected network assets.

Network Configuration

The rest of the configuration steps involve setting up the network interfaces of your Endian Appliance. Please see the next chapter, Network Configuration Wizard for details.
