IPSec VPN - How to Create a Roadwarrior Connection (Shrewsoft)

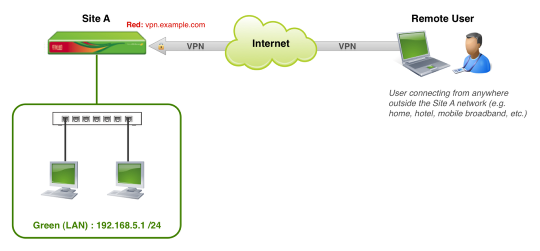

The diagram above is a simple illustration of the configuration example covered in this guide. We'll be creating a remote user (roadwarrior) connection to allow communication between any external remote computer and the internal Site A Green network. This will allow the user to act as though they were locally (direct) connected to the Green network of the Site A Endian device and access the same internal resources.

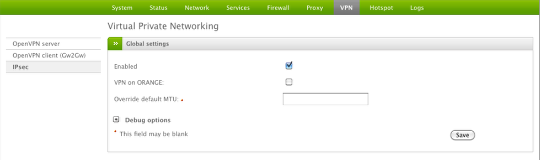

From the main menu, select VPN > IPSec and then check the box to enable the VPN server.

Click Save to continue.

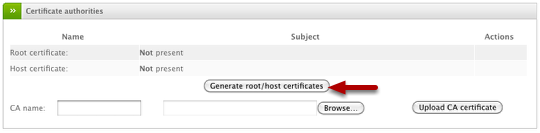

Under Certificate Authorities section, click Generate root/host certificates button to begin the process.

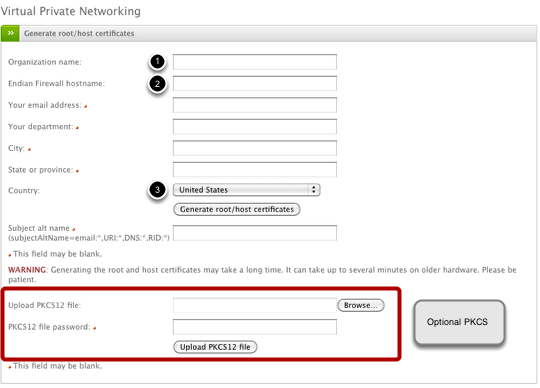

Now we'll populate the fields required to generate the certificates. Note the only actual required fields are the (1) Organization name, (2) Endian hostname, and (3) Country though it's recommended to complete as many field as possible.

OPTIONAL:
If you already have a PKCS certificate file that you would prefer to use instead of generating your own, you may upload them using the bottom section of the form.

Once you're done completing the form, click Generate root/host certificates to complete the process (this may take a few minutes).

Under VPN > IPSec and the "Connection status and control" box, click the Add button to create a new connection.

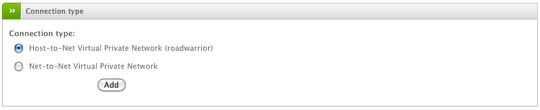

In the next screen, select Net-to-Net and click Add to continue.

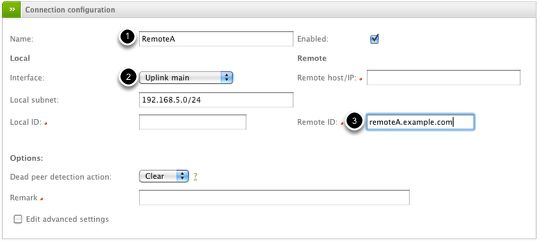

The first step is to configure the VPN account by providing the (1) Name, (2) External Interface to use for listening for incoming VPN connection, and (3) a uniqure Remote ID which in our case we're providing a fully-qualified domain name (FQDN) which we'll use when configuring the client software.

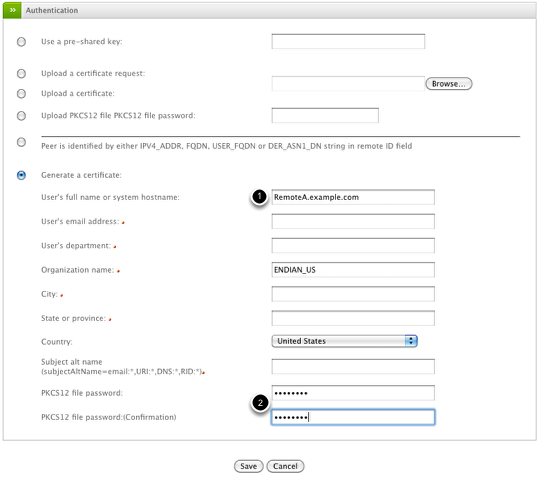

The second part of the VPN account creation requires creating a host certificate specific to this user account. Under Authentication, you'll need to provide the (1) User's full name or system name and (2) the PKCS file password (this should be a strong password) at a minimum though you can fill out the form in it's entirety if you choose.

Once you're done, click Save to generate the certificate and create the account.

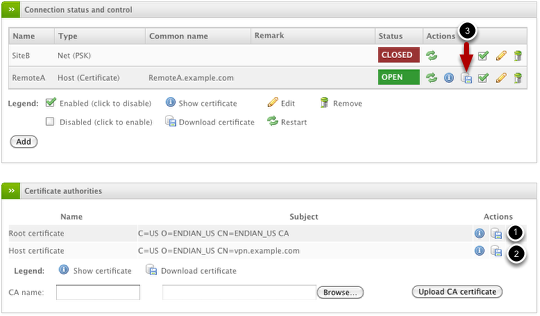

You'll need to download the certificates for use on the client software. You will need (1) the Root certificate, (2) the Host certificate, and (3) the client account certificate (PKCS).

Once you've downloaded and installed the client software, launch the ShrewSoft VPN Access Manager.

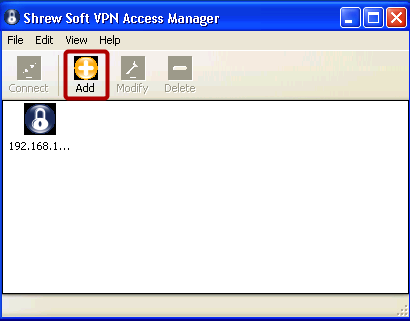

Select Add to create a new connection.

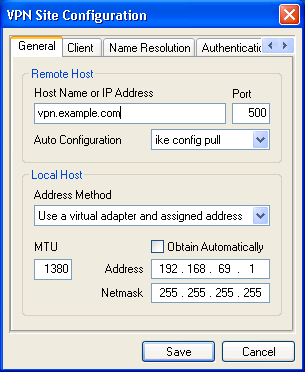

Under General tab, we'll enter the VPN Server IP or Hostname with default settings. Under Local Host, select "Use a virtual adapter and assigned address" and be sure to uncheck the "Obtain automatically". In the Address / Netmask fields you should use a subnet and netmask that is not being used anywhere on your network (so not 192.168.5.0/24 for our example).

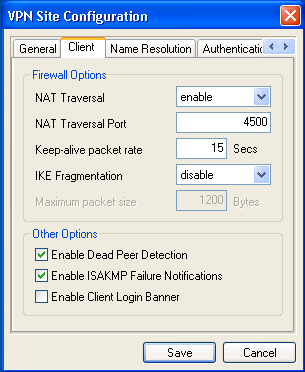

Under Client tab, you can use the default settings (shown above) and be sure that "Enable Dead Peer Detection" and "Enable ISAKMP Failure Notifications" are both checked.

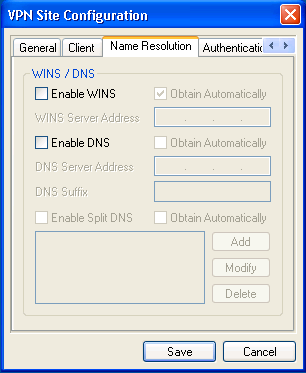

Under Name Resolution tab, you may enter WINS and/or DNS servers you would like to use with this specific VPN connection. We'll leave this blank for our example.

Under Authentication tab, select "Mutual RSA" for the authentication method and then configure the tabs as follows:

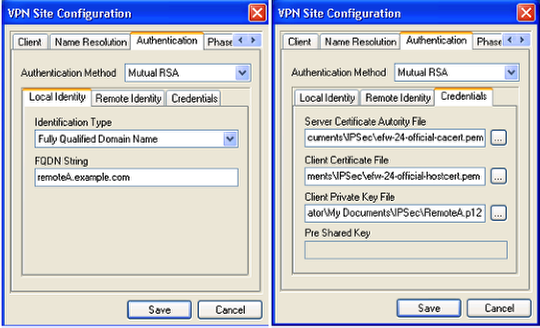

• Local Identity tab to use "Fully Qualified Domain Name" and provide the name you entered for the Remote ID field of the Endian VPN Server.
• Remote Identity tab to use "Any"
• Credentials tab is where you will use the certificate files from the Endian VPN Server (Server Certificate = Root, Client Certificate = Host, Client Private Key = Account PKCS Certificate (.p12))

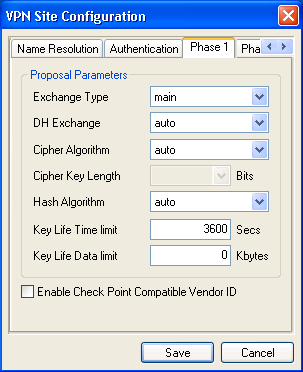

Under Phase 1 tab, use the settings shown above.

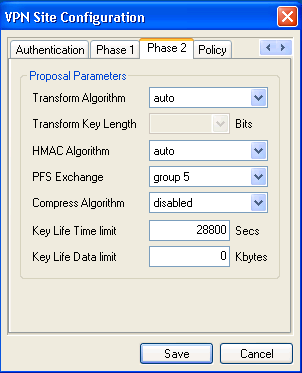

Under Phase 2 tab, use the settings shown above.

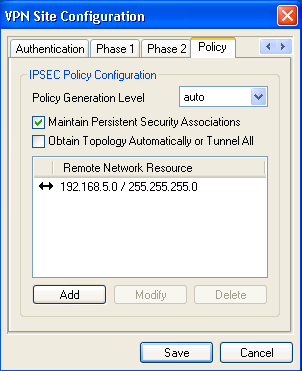

Under Policy tab, make sure that "Maintain Persistent Security Associations" is checked and then be sure to add the Endian Green LAN as the "Remote Network Resource".

Click Save to finish.

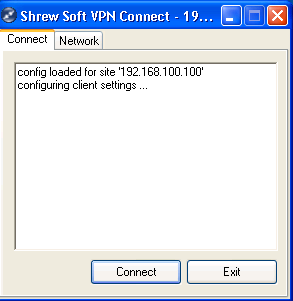

In the Shrewsoft client, select your newly created connection and click "Connect" and you see a dialog (shown above).

Just select Connect and then you will prompted for your PKCS password in order to complete the connection.

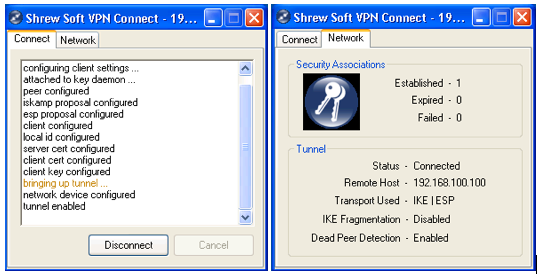

If your connection is established correctly, you should something similar to the above where "tunnel enabled" under the Connect tab and successful connection under the Network tab.

You should now be able to access internal resources on the Endian GREEN network.

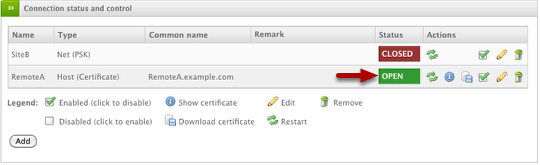

On the Endian, you should now see a successful connection with an OPEN status under the client account (shown above).
