Endian Cloud - Plug & Connect

Valid for: Endian Connect (5.0 or higher), 4i Edge (v5.0.2+ with Plug & Connect), UTM (v5.0.5+), Hotspot (v5.0.5+)
Updated on: November 21 2018

Introduction

This article will walk a new user through connecting to the Connect Switchboard with the Endian Connect Web (web-based client) and then show the necessary steps to connect an Endian appliance to their account using the Plug & Connect feature.

In order to proceed, you should have the following provided to you from Endian:

  1. User account which includes username and password
  2. Endian Appliance with a a valid Activation Code

Connect Web

To begin you will need to login using the Connect Web (web-based client). Click the URL below to access the Connect Web:

https://connect.endian.com

Once there, enter the username and password provided to you by your Endian representative.


Plug & Connect

Server side

Now we can connect the Endian Appliance demo device you received from Endian. To begin, click the Devices tab in the Connect App and once there click the link named Plug & Connect (Autoregistration)


You will see the Plug & Connect wizard which will walk you through the 3 steps to get your device connected:

  1. Claim your device by entering the activation code
  2. Provide basic device name and passwords
  3. Connect device to Internet and power on the unit

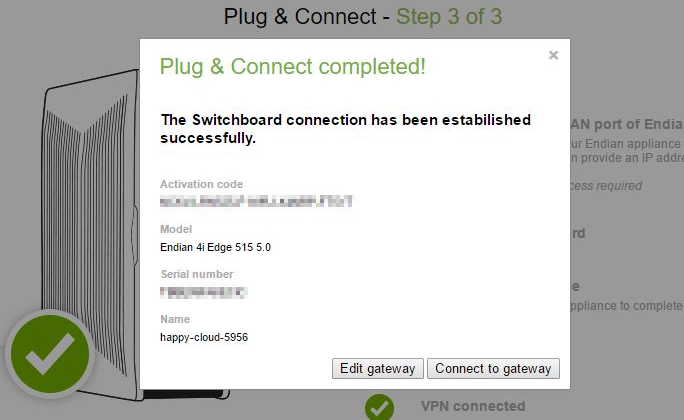

When the device is successfully connected to the Switchboard, you will receive a pop-up confirmation (shown below) and you can now either (a) further edit the configuration of the 4i Edge device [for example to create endpoints which can be accessed] or (b) you can connect to the remote device immediately.


Client Side

All Endian appliance with Endian OS version 5.0.5+ can be connected to the Switchboard thought plug and connect. In order to connect the appliance to the Switchboard assure that:

  • The appliance is register on Endian Network with a valid Activation Code.
  • The appliance can navigate on Internet and connect.endian.com is reachable

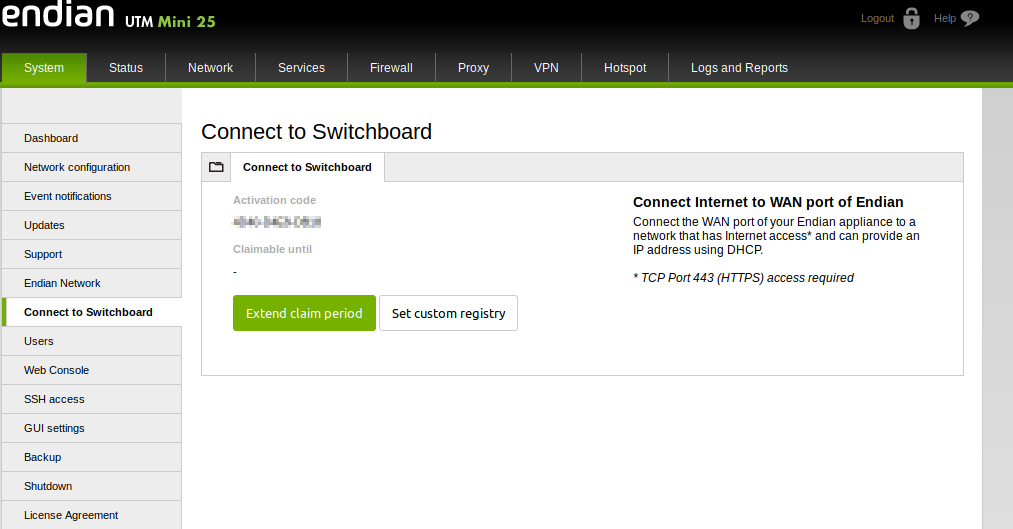

Log in in the Endian appliance GUI interface and navigate to Connect to Switchboard.


Press Extend claim period and the appliance will search for the provisioning configuration on connect.endian.com for the next 24 hours.

When the Plug & Connect procedure is started both on Server and Client side the device will connect and the Endian Appliance will establish a VPN connection with the Switchboard.
