How to Setup Session Management & Recording on a Switchboard (Admin Guide)

  Version 6.0

Applies to Platform: Switchboard 6.9.x
Last update: 18 Dec 2025

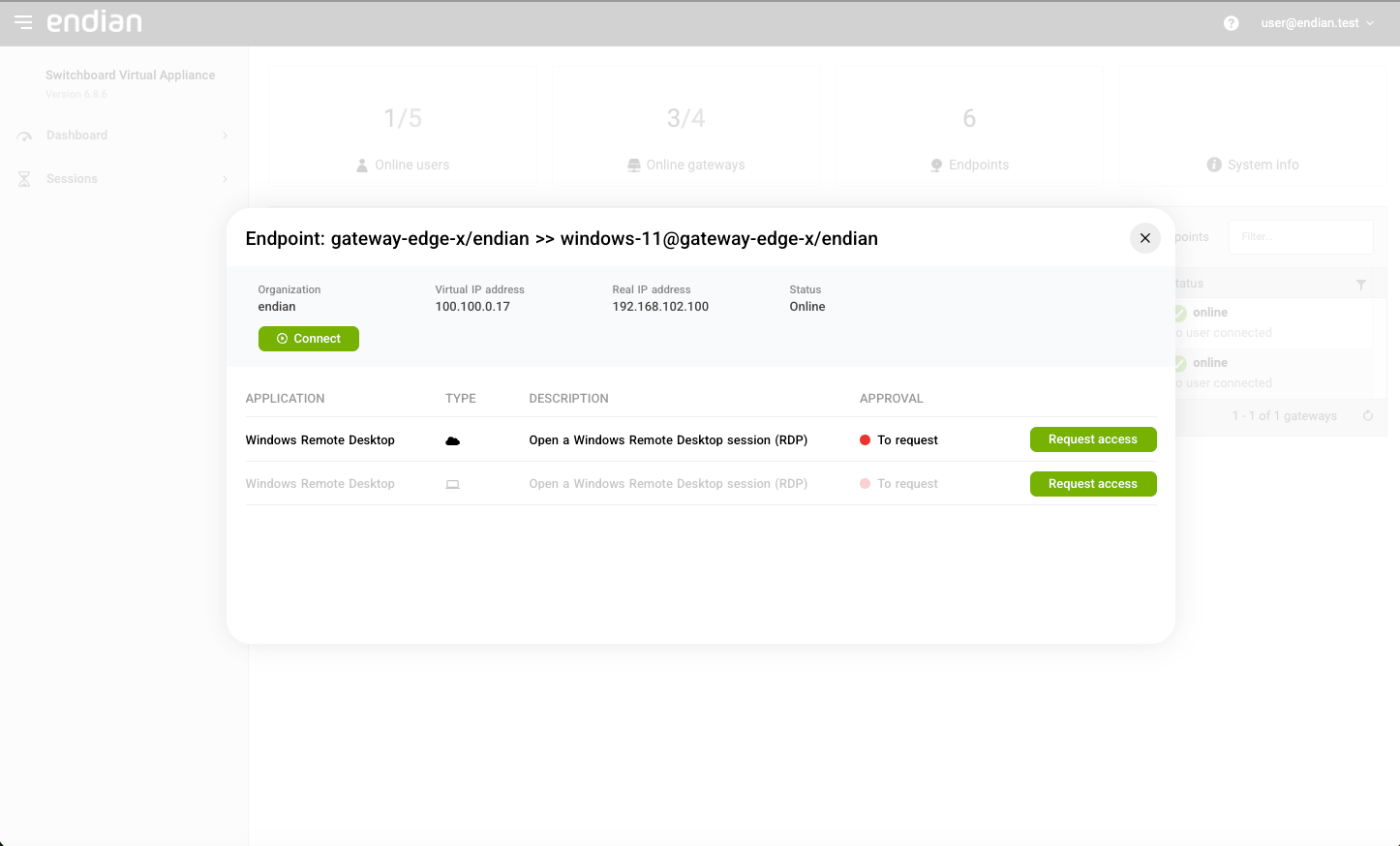

A new major feature for the Endian Switchboard in 6.9.x is a session management and recording feature was created to support advanced user/usergroup restrictions to endpoint resources (applications) including monitoring and auditing these session activites to provide for policy enforcement and compliance. The actual result of using this feature is that when a user logs in, any resources that require session approval will now allow the user to “request access” where the user then fills out a short form including time window of when they wish to access the resource. Once approved (by a user with approval permissions), the user can then login and connect to the resource to perform their job duty during the defined time window. If the session policy has recording enabled and the activity the user performed was supported for recording, then the activity is recorded by the Switchboard and made available to the users with appropriate session permissions.

Requirements

Before you begin you will need the following in order to complete this process:

1. An Endian Switchboard that is already setup and accessible on a public IP or FQDN.

2. An account with administrative access on the Endian Switchboard.

Recording Sizing Information

For each session recorded, a file is generated that consumes disk storage. Due to this, its important to understand the factors which can influence the size of the recorded session.

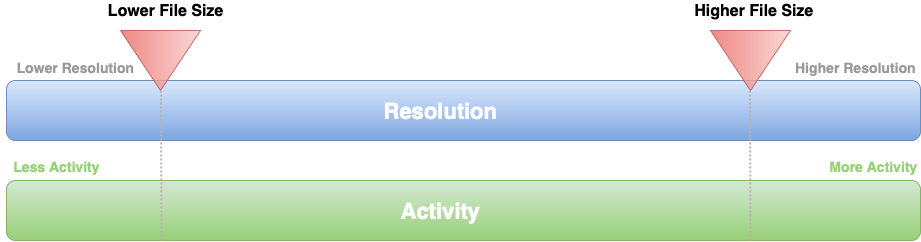

For video-based recordings (RDP & VNC), the main factors are as follows:

• Screen resolution - the higher the resolution the larger the recording size
• Screen activity - the more activity (e.g. window changes, movement, etc) the larger the recording size
• Session length - the longer the session the larger the recording size

For console recording (SSH & Telnet), the main factors are as follows:

• Session activity - the more activity (typing activity, multiplexing, I/O, etc) the larger the recording size
• Session length - the longer the session the larger the recording size

For reference purposes, here are some general estimations for various session recording sizes:

* The recording rates and resulting file size estimations are based on testing calculations and can vary
** The moderate activity for SSH assumes started shell interaction and excludes mulitplexing or heavy I/O

Manage User Permissions

There are three new user permissions introduced to support the new session management feature. They are outlined below:

• Manage Session Policies:  The user can manage (create, edit, delete) session policies.
• Approve Access Requests:  The user can approve session access requests. This user will automatically receive email notifications for new access requests for any user within their organization.
• Manage Sessions: The user can manage (view, join live or extend) sessions and view session history and recordings.

It's important to ensure you delegate these permissions appropriately based on your requirements.

You can find these permissions under Switchboard > Users.

Create Session Policy

A session policy is a policy that defines how access to a given resource (endpoint application) shall be granted - whether approval is required or not, recording settings, and other access constraints.

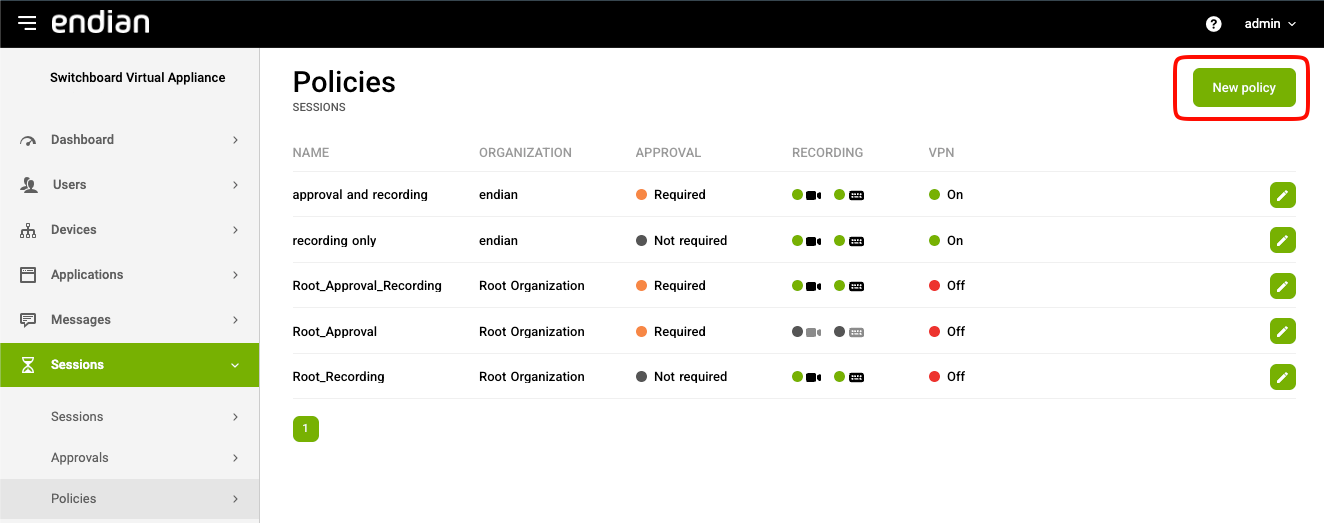

Navigate to Switchboard > Sessions > Policies and click the New Policy button.

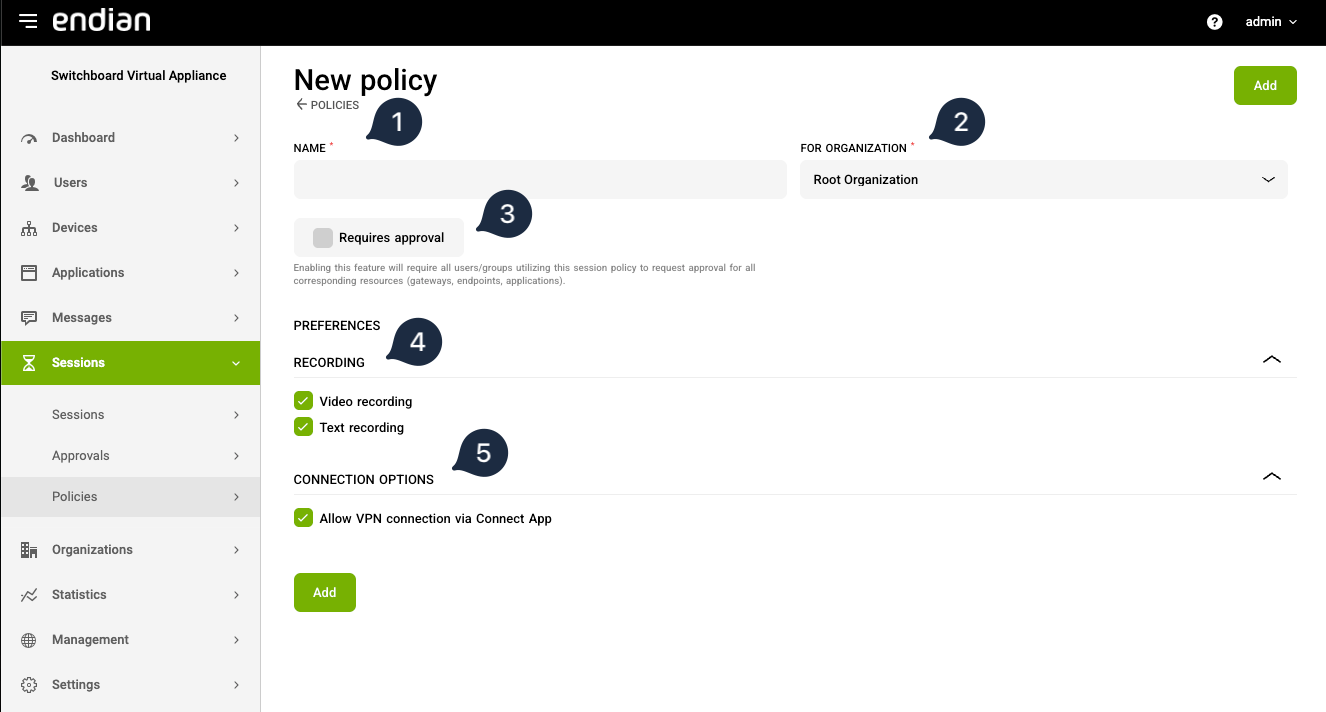

Here you can create a session policy by completing the form show below.

1. Name:  Enter the descriptive name used for this session policy
2. For Organization:  Here you can select the organization for which you wish to use this session policy.
3. Requires approval:  Check this box to require approval prior to access being granted. If not selected, then the user will be able to access the endpoints without approval but session policy parameters will be applied and logged.
4. Recording: Here you can select which types of recording you wish to utilize. This ONLY applies to connections through the Endian Web Portal.
   • Video Recording:  This will enable video recordings of RDP and VNC connections.
   • Text Recording:  This will enable video (text) recordings of SSH and Telnet connections.
5. Connection Options: Check this box to allow users to connect to the endpoints using the Endian Connect App. Remember, these sessions are not able to be recorded or monitored.

Click Add button to save the session policy.

Repeat this process to create as many session policies as needed.


Map Session Policy in ACAP

In order for the policy to be applied, it must match three specific variables: an Operator user, a specific endpoint and a specific application on that endpoint. This is achieved by using an ACAP (Advanced Action Policies) rule on the gateway that shields our endpoint. The standard ACAP syntax has been extended to allow for a fourth and optional value, the Policy name:

ALLOW “Application Name/domain” ON “endpoint_name” TO “username@email.address” WITH “Policy Name”

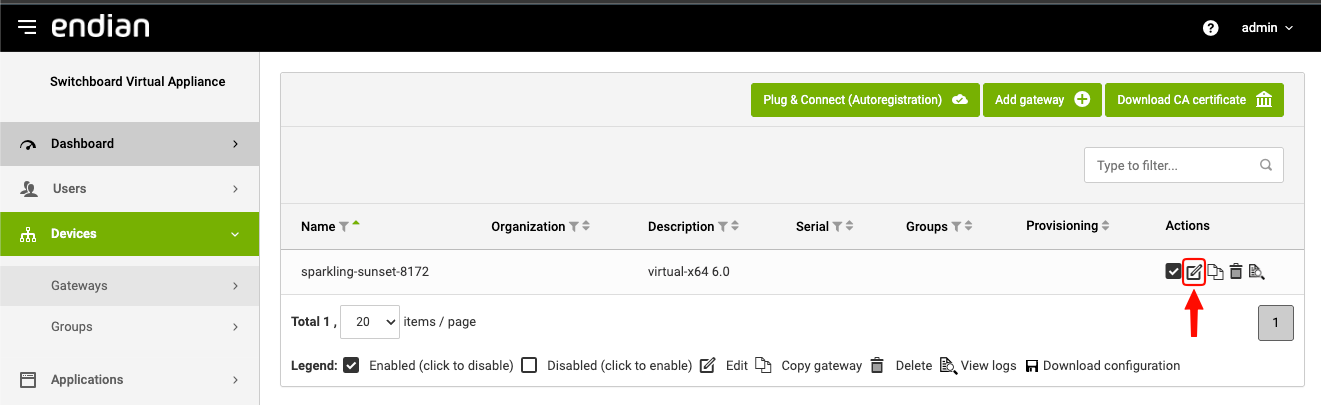

The ACAP policies are contained within the parameters of a Gateway device. To edit, you can click on Switchboard > Devices > Gateways and click the Edit button next to the desired gateway.

Navigate to the Permissions tab and you will find the Policies section where you can create the ACAP rules. You can learn about the basic syntax and usage in this article. We will build a sample ruleset below with an explanation for each item shown as a comment.

# Grant SSH access on the gateway to some power user
ALLOW "Secure Shell" ON "gateway" TO "poweruser@domain.org"

# Grant access (regulated by some policy) to an operator user
ALLOW "Secure Shell" ON "gateway" TO "operator@domain.org" WITH "Approve and record"

# Deny access to SSH to everyone else
DENY "Secure Shell" ON "gateway" TO *

# Grant policy regulated access to any other resource for a specific user group
ALLOW TO usergroup:Operations WITH "Record only"

# Deny access to every resource to anyone else
DENY

For this example, there would need to be two session policies: (1) named Approve and record and another (2) named Record only.

Click the Add / Change button to save the ACAP for this gateway. You can then repeat this process for each gateway required the use of session policies.

Once this is all completed, the policies should be applied to applicable users when they login and attempt to connect to protected resources identified in the policies.
